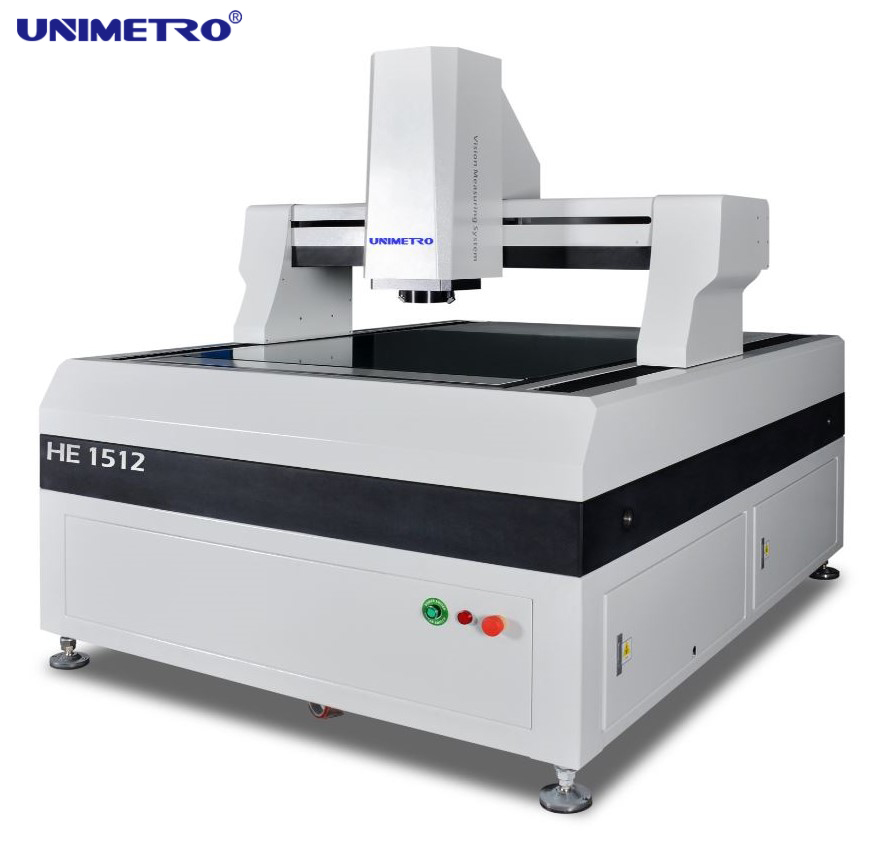

HE Series (Gantry Type CNC Automatic)

The HE series high accuracy gantry type vision measurement machine combines high accuracy and high efficiency offers high-speed measuring for the geometric elements of different kinds of parts. The HE series is widely used in various industries and products as PCB, copper clad laminate, pad glass, LCD modules, and insulation materials, etc.

문의

Overview
Specifications

High rigidity

Flexibility and high accuracy

Multiple sensors solution

Finite elements analysis is introduced in the designing process of the HE series, ensures high rigidity and accurate mechanical structure.

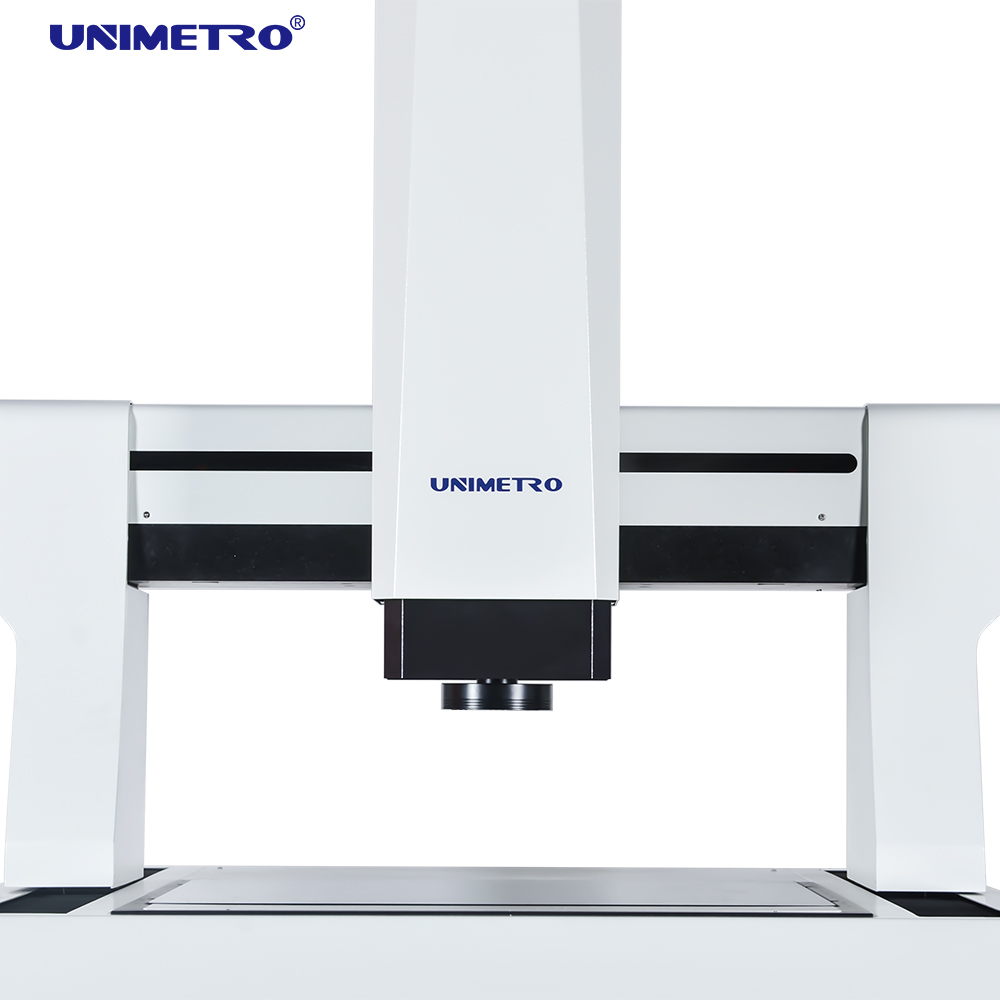

The machine base is using a closed frame movable bridge type structure, which is simple and offers high loading capacity and the best motion performance.
000-grade granite machine base, offers high rigidity, corrosion resistance, and high stability.

The work stage can preset multiple lenses combination is for option, satisfy different measuring requirements from different customers.
The full closed-loop motion control system ensures the best movement and positioning performance

The HE series gantry type vision measurement machine can combine multiple measuring sensors in one machine, including an imaging system, touch probe, laser sensor, and white light sensor. Also supporting the full line of Renishaw probe magazine, all the external measurement applications.

SPECIFICATION

Items		HE 652	HE 862	HE 1080	HE 1210	HE 1512	HE 1812
Dimension(mm)(LWH)		170011801750	170012801750	190014801750	210016801750	250018801750	270018801750
Measuring range(mm)(XYZ)		500600200	600800200	8001000200	10001200200	12001500200	12001800200
Measuring Accuracy (μm)		3+L/200	3+L/200	3+L/200	3+L/200	3+L/200	3+L/200
Repeatability (μm)		3	3	3	4	4	4
Weight (kg)		1500kg	1800kg	2900kg	3200kg	4400kg	4800kg
Image and Measuring	CCD	2 million pixel HD GIGA digital camera
	Lens	Fully automatic zoom objective 1~10X
	Magnification	18-195X(For reference only. With different camera and lens the magnification will be different)
	Field of view	8.1~1.3mm(For reference only, with different camera and lens combination, the value will be different)
	Working distance	82mm
Linear scale resolution		0.5μm(0.1μm for option)
Driving system		CNC control, AC fully closed-loop servo motor drive, joystick control, mouse/keyboard control
Illumination		Programmable LED8 partition ring surface light, LED bottom parallel light (optional: 40 partition ring light, coaxial light, adjustable color light source)

SPECIFICATION

Items		HE 652	HE 862	HE 1080	HE 1210	HE 1512	HE 1812
Dimension(mm)(LWH)		170011801750	170012801750	190014801750	210016801750	250018801750	270018801750
Measuring range(mm)(XYZ)		500600200	600800200	8001000200	10001200200	12001500200	12001800200
Measuring Accuracy (μm)		3+L/200	3+L/200	3+L/200	3+L/200	3+L/200	3+L/200
Repeatability (μm)		3	3	3	4	4	4
Weight (kg)		1500kg	1800kg	2900kg	3200kg	4400kg	4800kg
Image and Measuring	CCD	2 million pixel HD GIGA digital camera
	Lens	Fully automatic zoom objective 1~10X
	Magnification	18-195X(For reference only. With different camera and lens the magnification will be different)
	Field of view	8.1~1.3mm(For reference only, with different camera and lens combination, the value will be different)
	Working distance	82mm
Linear scale resolution		0.5μm(0.1μm for option)
Driving system		CNC control, AC fully closed-loop servo motor drive, joystick control, mouse/keyboard control
Illumination		Programmable LED8 partition ring surface light, LED bottom parallel light (optional: 40 partition ring light, coaxial light, adjustable color light source)
