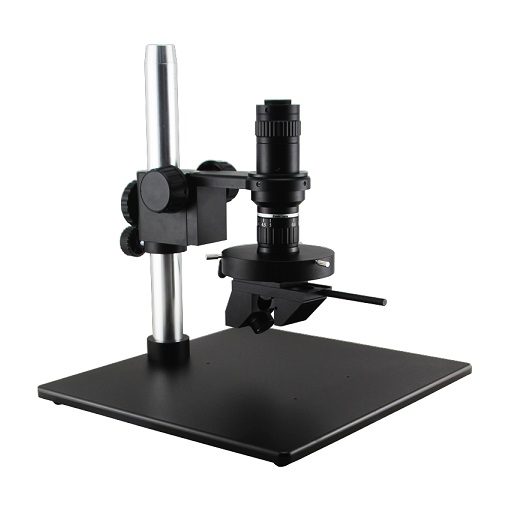

Main feature of 3D Video Microscope FA3D0325
- FA3D0325 3D video microscope body based on infinity optical system 0.6 – 5.0X optical zoom magnification
- Support 2D or 3D observation. 2D push pull switch 3d. 360° rotation 3D observation. The operation is simple and convenient to improve the detection efficiency
- 45° objective viewing angle. Working distance and center position alway maintain same when you switch 2D to 3D observation, No need to adjust the focus again. Adjust to any magnification have a best image without adjustable.
- Large FOV. Large depth of view. At minimum magnification, the field of view is full image without dark edge image
Dimension
Application
PCB Inspection
Hardware, Deep hole, Precision Electronics, Morphology
|
Model |
FA3D0325 |
|
Optical Parameter |
0.3-2.5X(0.6-5.0X zoom body with 0.5X C mount) |
|
Working distance |
86mm |
|
FOV |
24*13.5-2.88*1.62mm |
|
Mount |
Standard C mount |
|
Observation mode |
2D or 3D observation. 2D push pull switch 3D. |
|
3D viewer angle |
45° |
|
Base size |
L*W 330*300mm |
|
Height of stand |
318mm |
|
Focus |
Coarse |
|
Light source |
8-10W，12V LED ring light with 4 zones control，0-100% brightness adjustable |
