SZ6745-B1 Stereo Microscope For Industrial Field
SZ6745-B1 with magnification 6.7x to 45x, the eyepieces WF22mm and the Base size: 200x255x22mm. Suitable to industrial application.
See more: Stereo microscope SZ6745-J1
SZ6745 Zooming Body
- Binocular head, with one pair of WF10X22mm eyepiece
- Magnification from 6.7X to 45X
Specification
| Zoom Range | 0.67x - 4.5x |
| Zoom Ratio | 01:06.7 |
| Total Magnification | 6.7 - 45x (Standard), 3.35 - 270x with optional lens |
| Working Distance | 105mm (Standard), 26 - 287mm with optional lens |
| Interpupilary Distance | 54 - 75mm |
| Diopter Adjustment | +/-5 diopters |
| Binocular Tube | With and inclination of 45° for greater ease of observation |
| Binocular Body | Cane be rotated a full 360° and locked in any position desired |

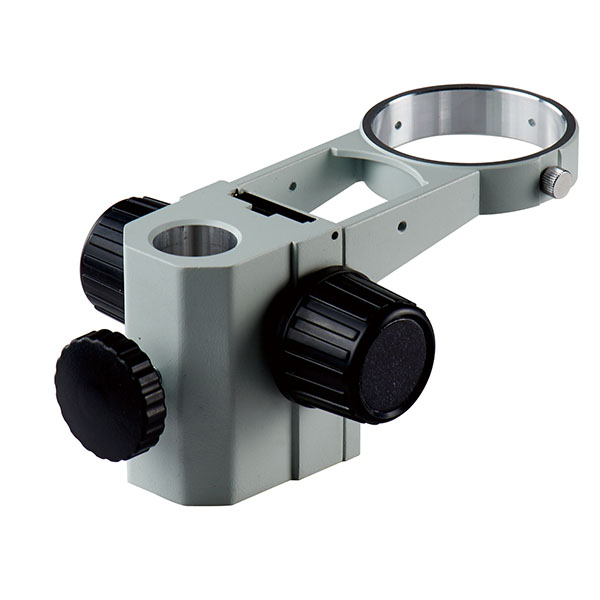

A1 Focusing Mount
ID.32mm for Pole
ID.76mm for Microscope Body
Dist.Centre-to-centre：155mm
The Vertical W.D.50mm
B1 STAND
Comparison: stereo microscope SZ6745-J2
Vertical Post：240mm
Diameter：φ32mm
With φ95mm B/W Plastic Plate and Paired Clips
Base Size：200x255x22mm
