SZ6745-B1
Detail View →

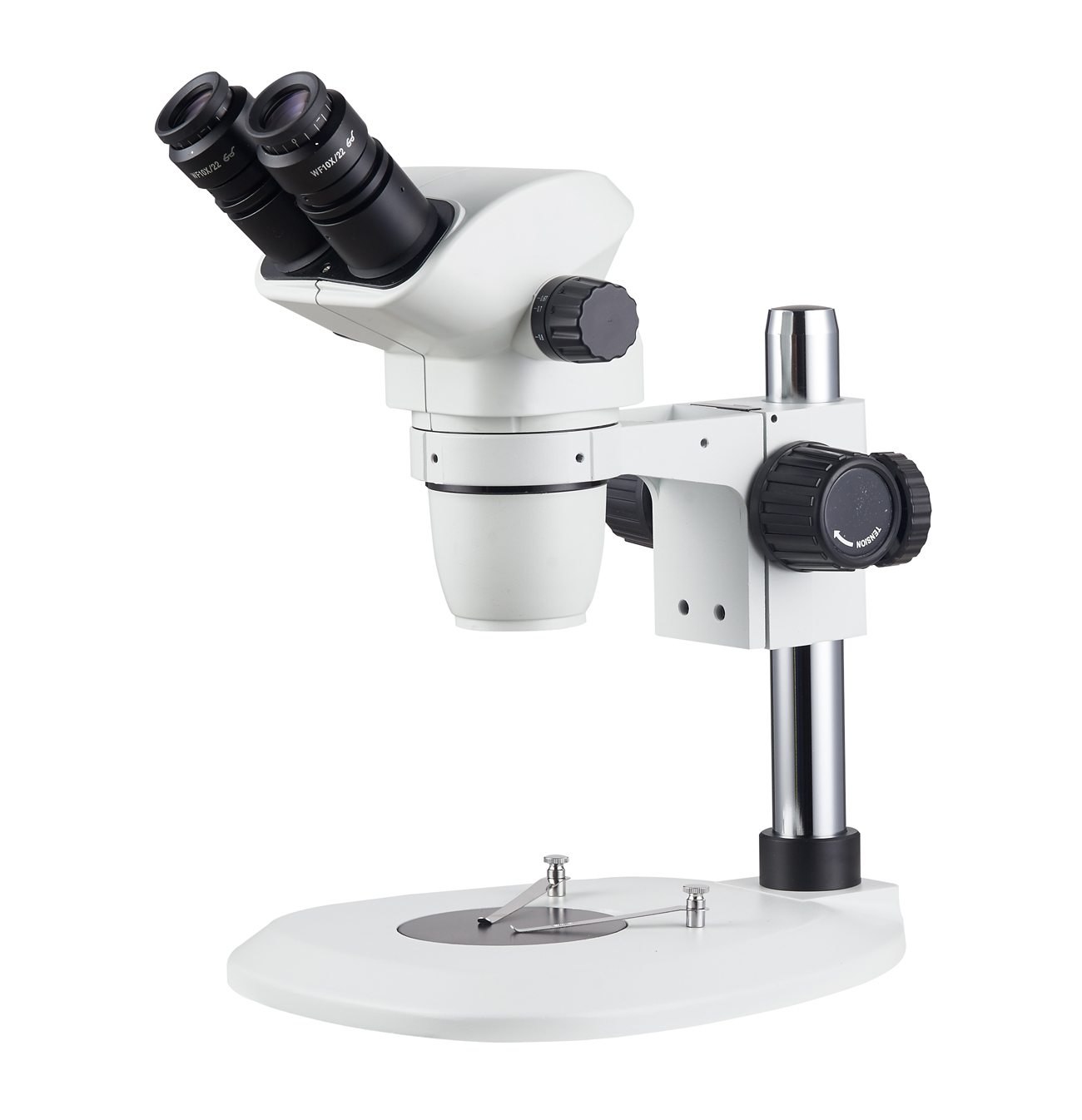

SZ6745 Zooming Body
- Binocular head, with one pair of WF10X22mm eyepiece
- Magnification from 6.7X to 45X
Specification
| Zoom Range | 0.67x - 4.5x |
| Zoom Ratio | 01:06.7 |
| Total Magnification | 6.7 - 45x (Standard), 3.35 - 270x with optional lens |
| Working Distance | 105mm (Standard), 26 - 287mm with optional lens |
| Interpupilary Distance | 54 - 75mm |
| Diopter Adjustment | +/-5 diopters |
| Binocular Tube | With and inclination of 45° for greater ease of observation |
| Binocular Body | Cane be rotated a full 360° and locked in any position desired |
J1 Standard Stand
| Vertical Post | 240mm Dia.32mm |
| Base Size |
285x238x25mm, with Ø95mm B/M plastic Plate and Paired Clips Using with A1 Focusing Mount |
