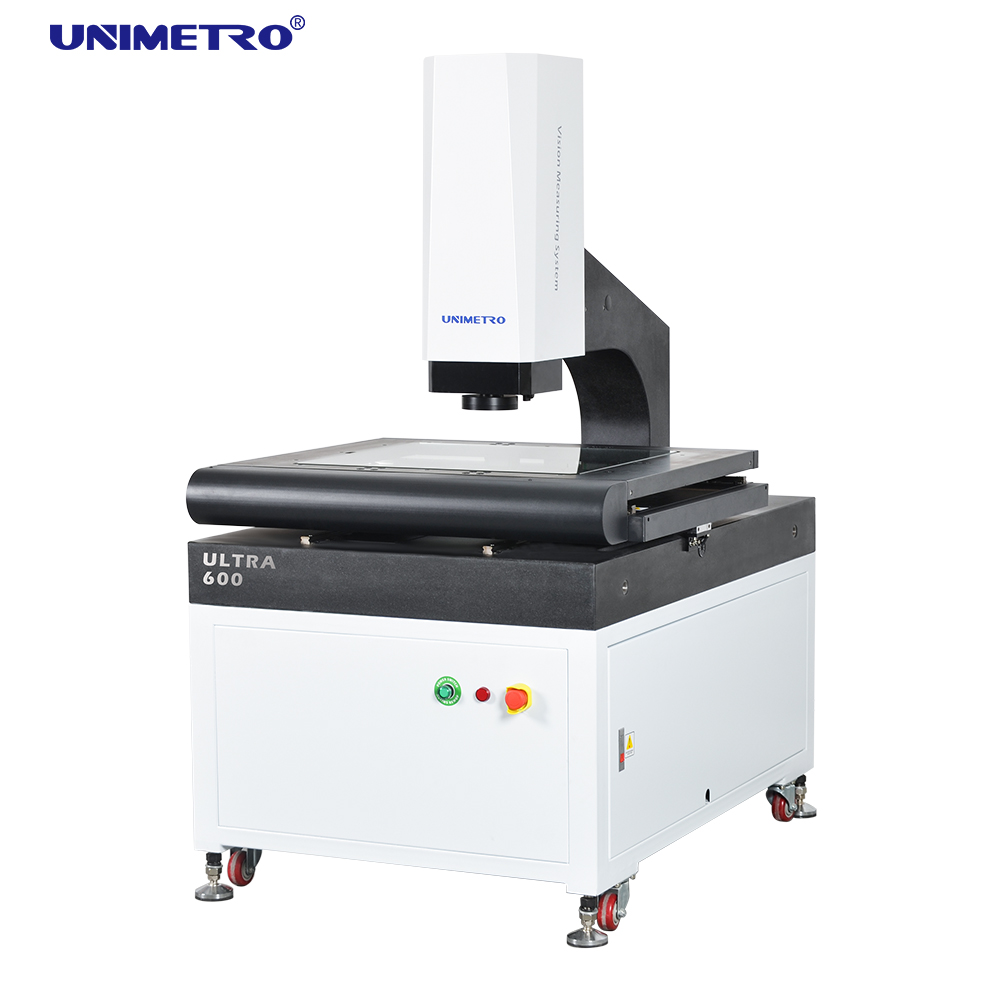

Contour Measuring Machine XY1000
Detail View →
Amazing quality
The aluminum work stage makes the motion control fast reacting and flexible. Work stage with hard oxidation surface processing, anti-scratch. Standard with precise linear slideway offers smarter mechanical structure and higher accuracy. The integrated control system, embedded with motion control, and signal control as illumination and linear scale reading, ensure the performance of the machine is extremely stable.
High-performance measuring device
With the External-Array Rational Vue composite measuring function. Multi-types of non-contact sensors and fast fixturing systems are for options, which can satisfy different measuring requirements from different customers. Movable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts, with different kinds of materials or shapes, offers a more powerful measuring application.
Flexible expansibility
Thanks to the flexible expansibility of the ULTRA series, it is compatible with a touch probe, non-contact measuring sensors, and robot arm, highly increase the measuring efficiency
SPECIFICATION
| Items | ULTRA300 | ULTRA 400 | ULTRA 500 | ULTRA 600 | |
| Dimension(mm)(L*W*H) | 1600*780*1700 | 1750*920*1700 | 1850*1180*1700 | 1950*1280*1700 | |
| Measuring range(mm)(X*Y*Z) | 300*200*200 | 400*300*200 | 500*400*200 | 600*500*200 | |
| Measuring Accuracy (μm) | 2.5+L/200 | 2.5+L/200 | 2.5+L/200 | 2.5+L/200 | |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 | 2.5 | |
| Weight (kg) | 320kg | 390kg | 460kg | 560kg | |
| Image and Measuring | CCD | 1.2million pixel HD GIGA digital camera | |||
| Lens | Fully automatic zoom objective 1~10X | ||||
| Magnification | 18-195X(For reference only. With different camera and lens the magnification will be different) | ||||
| Field of view | 8.1~1.3mm(For reference only, with different camera and lens combination, the value will be different) | ||||
| Working distance | 108mm | ||||
| Linear scale resolution | 0.1μm | ||||
| Driving system | CNC control, closed-loop AC Servo driving system, joystick, mouse or keyboard control | ||||
| Illumination | Programmable 8 section LED ring surface light, parallel LED contour light (40 section LED ring light, co-axial light, movable multi-color ring light for option) | ||||
